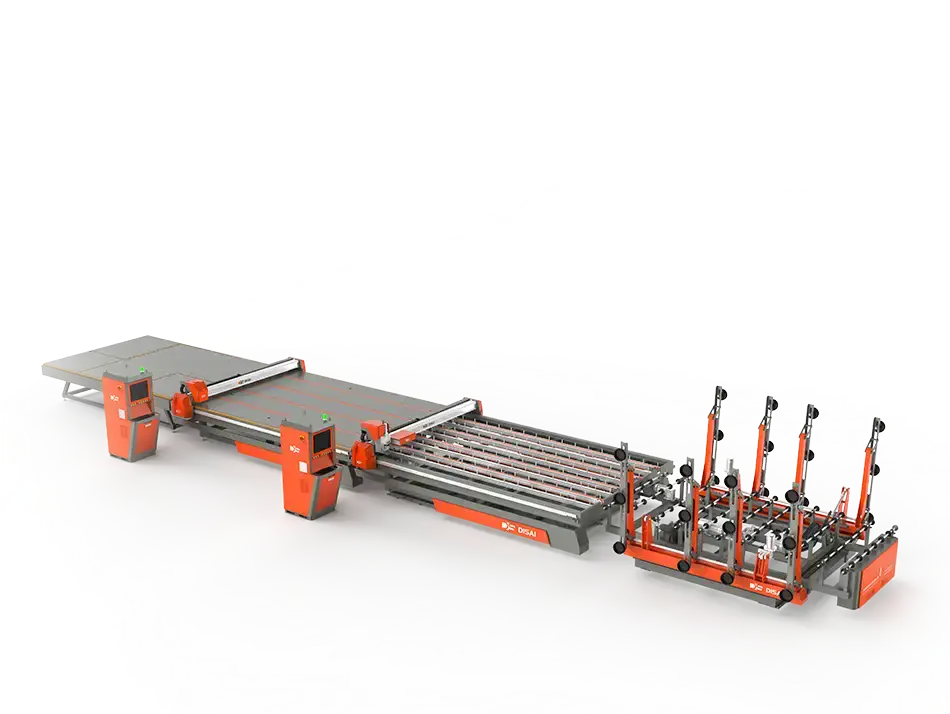

Automatic Glass Cutting Line (With Laser Drilling)
Enhanced Glass Processing with Laser TechnologyThe automatic glass cutting Line with laser drilling is a state-of-the-art solution for the glass industry, offering high precision and efficiency in glass cutting and drilling. This machine is tailored for medium to large-scale operations, providing a robust and reliable solution for construction, automotive, and architectural glass applications. With its advanced laser technology, it ensures minimal material waste and optimal cutting quality.
Technical Specifications
| Models | Max Glass Size | Cutting Precision | Drilling Precision | Cutting/Drilling Thickness | Max Cutting Speed | Drilling Speed | Laser Power and Type | Matched Loading Table Model |
|---|---|---|---|---|---|---|---|---|
| DS-CM2621-LD | 2600×2100 | ±0.15mm | ±0.1mm | 2-10mm | 180m/min | 5mm clear glass/∅40mm hole/~15s | 120W | All can be equipped with 1to 10 work stations |
| DS-CM3725-LD | 3700×2500 | ±0.15mm | ±0.1mm | 2-10mm | 180m/min | 120W | ||
| DS-CM4228-LD | 4200×2800 | ±0.20mm | ±0.1mm | 2-10mm | 180m/min | 120W | ||
| DS-CM5133-LD | 5100×3300 | ±0.25mm | ±0.1mm | 3-10mm | 180m/min | 120W | ||
| DS-CM6133-LD | 6100×3300 | ±0.25mm | ±0.1mm | 3-10mm | 180m/min | 120W | ||
| DS-CM7537-LD | 7500×3700 | ±0.25mm | ±0.1mm | 5-10mm | 180m/min | 120W | ||
| DS-CM10037-LD | 10000×3700 | ±0.25mm | ±0.1mm | 5-10mm | 180m/min | 120W | Only equipped with double-turn single-satation | |
| DS-CM12037-LD | 12000×3700 | ±0.25mm | ±0.1mm | 5-10mm | 180m/min | 120W | ||
| DS-CM16037-LD | 16000×3700 | ±0.25mm | ±0.1mm | 5-10mm | 180m/min | 120W | ||
| DS-CM18037-LD | 18000×3700 | ±0.25mm | ±0.1mm | 5-10mm | 180m/min | 120W |
Key Technical Features and Benefits
1.Laser drilling integrated into the cutting process reduces costs and increases efficiency.
2.It uses a 120W MOPA laser and has a fast drilling speed.
3.The hole size is accurate and has less edge explosion.
4.The holes have no taper and the surface is smooth.
Why Choose Our Automatic Glass Cutting Line with Laser Drilling for Precision Glass Work?
Precision processing has become the core standard of modern high-end glass manufacturing. Traditional glass cutting equipment can only complete simple splitting and shaping, and cannot meet the integrated processing demands of precise cutting, hole opening and forming for home appliance glass, architectural glass, automotive glass and smart decorative glass. Our Automatic Glass Cutting Line with Laser Drilling is specially developed for high-precision integrated processing, perfectly solving the problems of low precision, multiple procedures and high scrap rate of traditional separate processing equipment.
This all-in-one production line integrates automatic glass cutting and high-precision laser drilling technology in one compact system. Adopting advanced CNC intelligent control system and high-stability servo drive units, it achieves accurate positioning and micron-level processing tolerance. Different from mechanical drilling that causes edge chipping and micro-cracks, laser drilling features non-contact processing, delivering smooth, burr-free and crack-free hole walls and cutting sections. It supports various complex processing requirements such as special-shaped cutting, round holes, square holes and irregular openings, fully adapting to diversified customized orders.
Featuring full automatic workflow from feeding, positioning, cutting, laser drilling to blanking, the equipment minimizes manual intervention and effectively avoids human operation errors. It maintains stable and consistent processing accuracy during long-term continuous mass production, greatly improving product qualification rate. The intelligent real-time calibration system automatically corrects placement deviations, further reducing material waste and production costs.
In addition to outstanding processing performance, the integrated design saves workshop space and simplifies production procedures, eliminating repeated clamping and secondary handling. With stable mechanical structure and low failure rate, it reduces daily maintenance costs and improves overall production efficiency.
In conclusion, our glass cutting line with laser drilling integrates dual core advantages of precision cutting and fine drilling. It helps glass processing enterprises upgrade production technology, realize one-stop high-precision processing, and enhance core competitiveness in the high-end glass market.
