What is the function of laser engraved QR codes?

It serves as the foundation for factory-wide data interconnection. Each glass sheet gets a unique ID for production tracking and warehouse management, realizing intelligent factory control.

What advantages does the gantry dual-drive direct servo system have over ordinary models?

Higher operating speed and stable cutting & positioning accuracy. It maintains precision during long continuous production, ideal for mass processing of window and curtain wall glass.

What brands are used for electrical components, and how stable is the machine?

The machine adopts world-famous electrical parts with strong anti-interference performance and low failure rate. It runs reliably under complex workshop conditions overseas.

Are automatic labeling and Low-E coating removal standard or optional?

Both are optional upgrades. Customers can add them according to production line requirements to expand processing capacity flexibly.

What types of glass can this machine process?

It works for clear float glass, raw tempered glass and Low-E coated glass. It supports rectangular & shaped cutting, matching insulating and laminated glass production lines.

Will laser marking cause damage to glass sheets?

The cold laser marking process only engraves marks on the surface without creating internal stress or edge chipping, and will not affect subsequent tempering and edging processes.

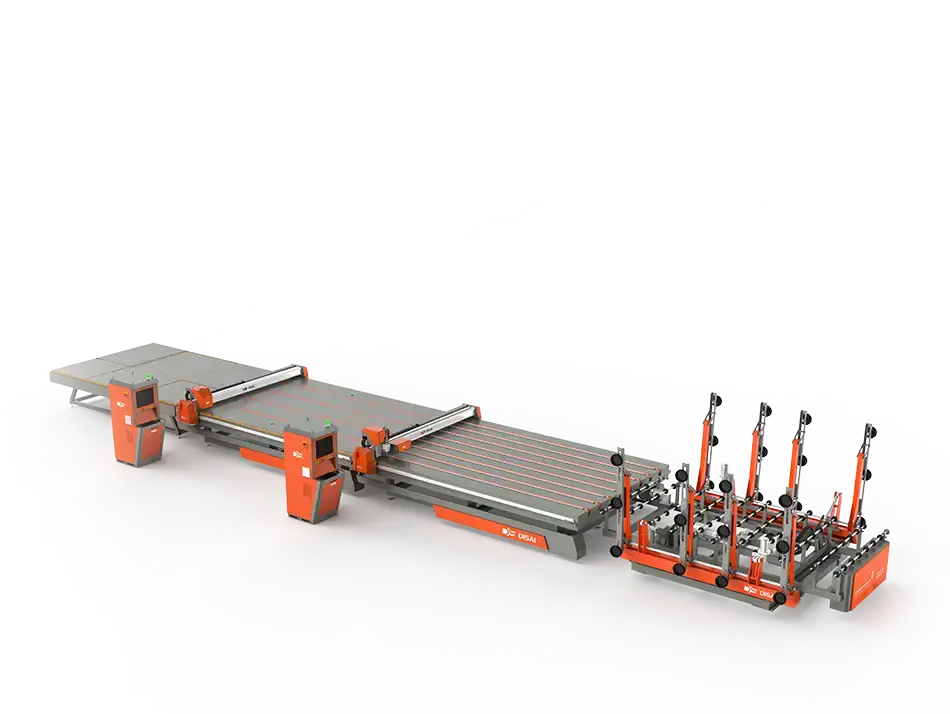

Automatic Glass Cutting Line (With Laser Marking)

Efficient Glass Processing Solution

This integrated production line realizes automatic glass cutting and laser marking in one workflow.
Featuring high cutting precision and stable continuous running, it reduces manual intervention and improves overall productivity.
Ideal for architectural, furniture and home appliance glass processing.

Models:

DS-CM-JD Series

Series Max Cutting Size:

18000×3700mm

Max Speed:

180m/min

Marking Speed:

1S/Standard 3C Mark

Send E-mail Request A Quote

Technical Specifications

DISAI automatic glass cutting machine model size
Models	Max Cutting .sheet	Precision	Marking Position Precision	Cutting Marking Thickness	Max Speed	Marking Speed	Matched Loading Table Model
DS-CM2621-JD	2600×2100mm	±0.15mm	±0.5mm	2-19mm	180m/min	1s/Standard 3C Mark	All can be equipped with 1 to 10 work stations
DS-CM3725-JD	3700×2500mm	±0.15mm	±0.5mm	2-19mm	180m/min
DS-CM4228-JD	4200×2800mm	±0.20mm	±0.5mm	2-19mm	180m/min
DS-CM5133-JD	5100×3300mm	±0.25mm	±0.5mm	3-25mm	180m/min
DS-CM6133-JD	6100×3300mm	±0.25mm	±0.5mm	3-25mm	180m/min
DS-CM7537-JD	7500×3700mm	±0.25mm	±0.5mm	5-25mm	180m/min
DS-CM10037-JD	10000×3700mm	±0.25mm	±0.5mm	5-25mm	180m/min		Only equipped with double-turn single-station
DS-CM12037-JD	12000×3700mm	±0.25mm	±0.5mm	5-25mm	180m/min
DS-CM16037-JD	16000×3700mm	±0.25mm	±0.5mm	5-25mm	180m/min
DS-CM18037-JD	18000×3700mm	±0.25mm	±0.5mm	5-25mm	180m/min

Core Technical Advantages

FEATURE 1

Laser Engraving of QR Codes

Foundation for factory-wide monitoring and data connection, enabling smarter and more efficient glass production.

FEATURE 2

High Speed & High Precision

Gantry dual-drive structure with direct servo motor drive, delivering superior cutting speed and accuracy.

FEATURE 3

Premium Configuration

Equipped with world-renowned brand electrical components for outstanding stability and reliability.

FEATURE 4

Rich Expandable Functions

Optional automatic labeling and Low-E coating removal functions for greater convenience and efficiency.

Why Choose Our Automatic Glass Cutting Line?

DISAI, striving for precision and adhering to quality
Focusing on the research and development and intelligent manufacturing of glass equipment, we strive to create high-quality products with our heart.
DISAI Automatic glass cutting line ,more than 30 processes are strictly controlled, with traceable quality throughout the entire process and high-quality equipment delivered

The automatic glass cutting line with Laser Marking is engineered to meet the demands of high-volume glass processing. With a cutting speed of 180m/min and accuracy down to ±0.15mm, it ensures that each piece of glass is cut to precise specifications. This machine is suitable for standard to glass industrial applications, making it an ideal choice for large-scale construction projects and automotive glass manufacturing.

Its application extends beyond mere cutting; the integrated laser marking system allows for the inscription of logos, batch numbers, or any other required markings directly onto the glass surface. This feature is particularly beneficial for quality assurance and brand recognition in the competitive glass market.

Compared to manual cutting methods or less advanced machinery, our Automatic Glass Cutting Line offers significant advantages in terms of productivity, accuracy, and operational efficiency. It reduces the risk of human error and minimizes material wastage, leading to cost savings and improved output quality.

DISAI's exclusive bidirectional cutting mode:Different from the unidirectional cutting mode, the bidirectional cutting mode can select theknife position nearby, thereby reducing the empty knife moving distance, improving cuttingefficiency, increasing output, and saving costs.
Linear guide rail and motor direct drive (dual drive):DISAI glass cutting machine adopts dual-drive linear guide rail and motor direct drive modeto replace the traditional belt drive mode, thereby reducing the transmission error caused by beltdrive and improving cutting efficiency and accuracy.
Industrial computer controller:The biggest difference between EVOS industrial computers and ordinary computers is thehigh-intensity resistance to electromagnetic interference, excellent dustproof ability, hightemperature and low temperature resistance, which can be used for high-intensity work in glassfactories, improve service life, and reduce failure rate.
