Which glass sizes and thicknesses can the DS-ICT-A Series handle?

Based on the current product information, the DS-ICT-A Series is available for 3–19 mm glass. Maximum glass size depends on the selected model: up to 2600 × 2100 mm for DS-ICT2621-A and 3800 × 2650 mm for DS-ICT3826-A. Final suitability should be confirmed according to the glass specifications and project configuration.

Can Low-E film removal and glass labeling be added?

Low-E film removal and glass labeling are available as optional processing functions. The suitable configuration should be selected according to the glass type, processing requirements and production workflow.

What information is needed to recommend a suitable model?

Please provide your common glass size range, glass thickness, required processing functions, expected automation level and available layout space. This information helps us evaluate a suitable system configuration.

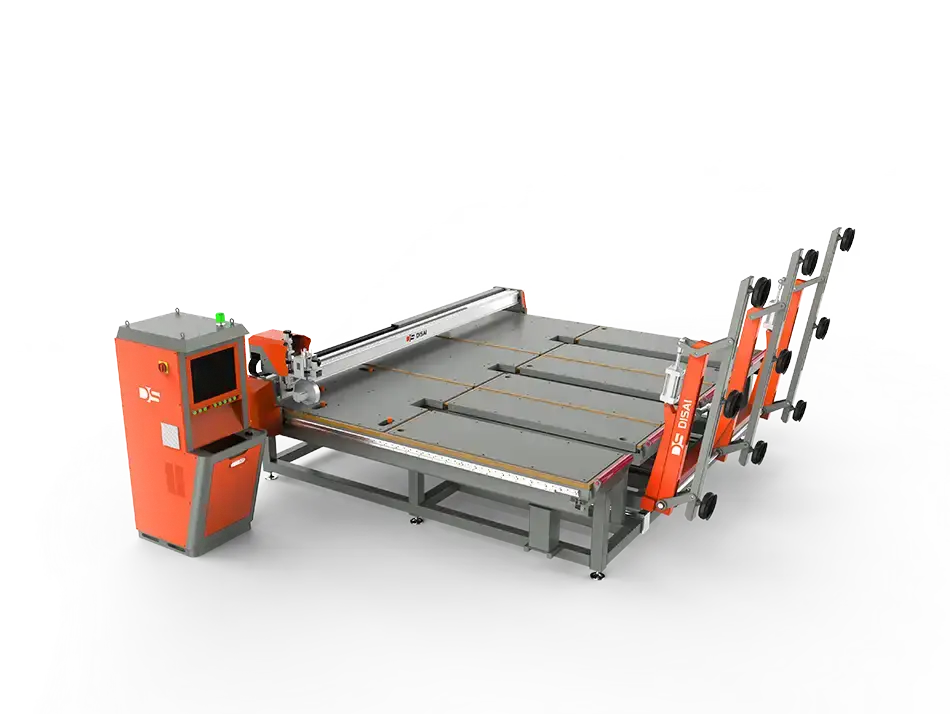

Integrated Glass Cutting Table(Automatic Loading)

Integrated Glass Cutting Table with Automatic Loading

Q: Does the system combine automatic loading, cutting and breakout functions?

Yes. The DS-ICT-A Series integrates automatic glass loading, cutting and breakout functions within one equipment layout.

Automatic Loading, Cutting and Breaking in One Integrated System

The DS-ICT-A series combines automatic glass loading, cutting and breakout functions in one integrated system. It is designed to help glass processors organize the cutting workflow with automated sheet loading and a compact equipment layout.

Model NO.:

DS-ICT-A Series

Cutting Precision:

± 0.20mm

Glass Thickness:

3-19mm

Maximum Glass Cutting Speed:

160m/min

Send E-mail Request A Quote

Technical Specifications

Models	Max glass size	Glass thickness	Precision	Max cutting speed	Loading speed
DS-ICT2621-A	2600×2100	3-19mm	±0.20mm	160m/min	40~50s
DS-ICT3826-A	3800×2650	3-19mm	±0.20mm	160m/min	40~50s

Key Technical Features

FEATURE 1

Automatic Loading and Easy Operation

The automatic loading system transfers glass sheets onto the cutting table as part of an organized and centralized cutting workflow.

FEATURE 2

Compact Integrated Layout

Glass loading, cutting and breakout functions are integrated into one equipment layout to help reduce the space required for separate machines.

FEATURE 3

Programmed Glass Cutting

The system carries out glass cutting according to the selected cutting program. Final cutting performance depends on the selected model and configuration.

FEATURE 4

Stable Operation and Flexible Options

Imported core components from internationally recognized brands support stable system operation. Low-E film removal and glass labeling can be selected as optional processing functions.

Why Choose Our Integrated Glass Cutting Table with Automatic loading？

Our integrated glass cutting table combines automatic cutting, precise positioning and optional laser marking into one compact unit, delivering a fully streamlined production workflow for glass processors. It eliminates repeated handling of semi-finished glass between separate machines, saving plenty of production time.

Built with robust frame structure and high-precision transmission systems, it ensures clean, consistent cuts and minimises glass breakage to reduce material waste. Intelligent automatic operation greatly lowers reliance on manual labour and shortens processing cycles, helping you cut comprehensive production costs.

Compared with separated cutting and marking equipment, our all-in-one design saves valuable factory floor space and simplifies daily operation and maintenance. Stable long-running performance supports continuous mass production for architectural, furniture and home appliance glass.

We provide flexible customised configurations and comprehensive reliable after-sales support to match your unique production demands. Upgrade your glass processing line with our efficient, cost-effective cutting solution and gain stronger competitiveness in the market.
