Which glass sizes and thicknesses can the DS-ICT-J Series handle?

Available glass size and thickness depend on the selected model and final configuration. Please refer to the confirmed technical parameters or share your glass specifications for an evaluation.

Does the system combine loading, cutting and breakout functions?

Yes. The DS-ICT-J Series is designed as an integrated system combining manual glass loading, cutting and breakout functions.

Can the machine include Low-E film removal?

Low-E film removal can be evaluated as an optional function where applicable. Please share your glass type and processing requirement for confirmation.

What information is needed to recommend a suitable model?

Please provide your common glass size range, glass thickness, current production setup and available layout space.

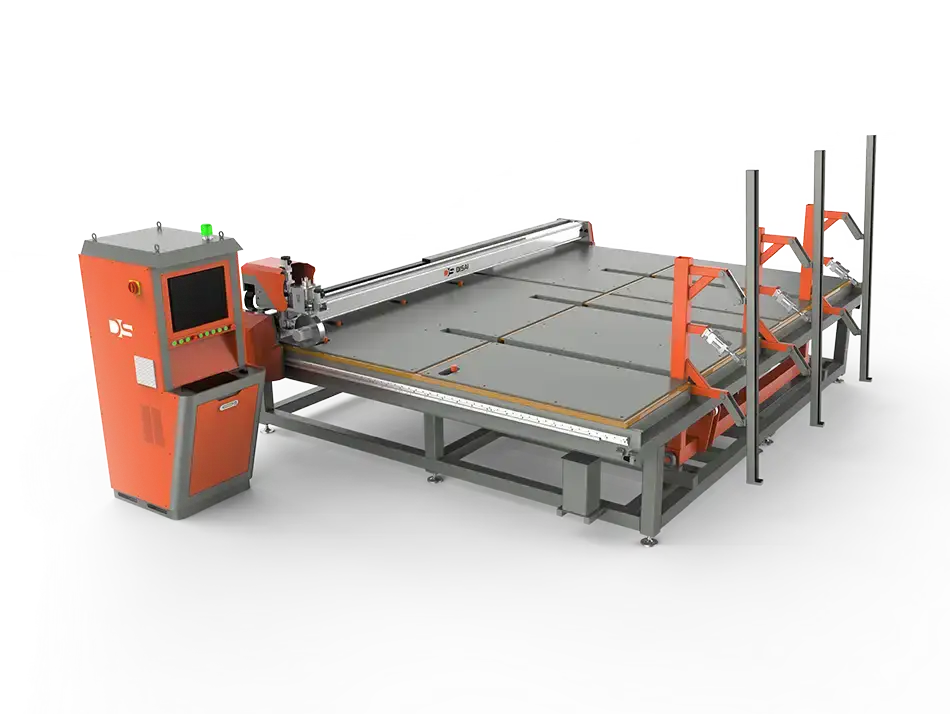

Integrated Glass Cutting Table(Manual Loading)

Integrated Glass Cutting Table with Manual Loading

Integrated Loading, Cutting and Breakout in One Compact System

The DS-ICT-J Series combines manual glass loading, cutting and breakout functions in one integrated system. It is designed for glass processors that retain manual loading while seeking a more organized cutting workflow within a compact equipment layout.

Model NO.:

DS-ICT-J Series

Cutting Precision:

±0.20mm

Glass Thickness:

3-19mm

Maximum Glass Cutting Speed:

160m/min

Send E-mail Request A Quote

Technical Specifications

Models	Max Cutting Size	Glass Thickness	Maximum Glass Cutting Speed	Precision	Loading Speed
DC-ICT2621-J	2600 x 2100mm	3-19mm	160m/min	±0.20mm	40~50s
DC-ICT3826-J	3800 x 2650mm	3-19mm	160m/min	±0.20mm	40~50s

Key Technical Features and Advantages

FEATURE 1

Integrated Manual Loading, Cutting and Breakout

The DS-ICT-J Series combines manual glass loading, cutting and breakout functions within one integrated equipment layout.

FEATURE 2

Bidirectional Cutting Path Planning

The bidirectional cutting mode can select a nearby cutting position to reduce non-cutting travel, subject to the selected cutting program and configuration.

FEATURE 3

Optional Processing Functions

Low-E film removal and glass labeling functions are available as optional configurations, selected according to processing requirements.

FEATURE 4

International Brand Core Components

The DS-ICT-J Series uses imported core components from internationally recognized brands to support stable system operation.

Why Choose Our Integrated Glass Cutting Table with Manual Loading?

In glass processing industry, fully automatic unmanned lines are not the ideal choice for every manufacturer. Most small and medium-sized factories and custom processing workshops focus on flexible production, low investment and stable output.

Our Integrated Glass Cutting Table with Manual Loading is purpose-built for these practical demands, effectively resolving the common drawbacks of traditional separate processing equipment, including rigid workflows, high glass breakage rates and poor adaptability. It offers a high cost-performance solution for small-batch, diversified and frequently updated glass orders for furniture, home appliances and architectural applications.

The manual loading cutting table adopts a compact all-in-one structure, integrating precision glass cutting and intelligent positioning functions. The manual feeding design delivers excellent operational flexibility, allowing workers to place glass sheets of different sizes and thicknesses freely according to order requirements.

It is highly suitable for custom scenarios such as special-shaped cutting, small-batch production and sample proofing, tasks that are inefficient for rigid fully automated equipment. This flexible mode avoids idle operation and resource waste, greatly optimizing factory scheduling and improving production diversity.

In short, our Manual Loading Integrated Glass Cutting Table perfectly balances flexibility, precision and cost-efficiency. It solves the traditional industry dilemma of low precision at low cost or high investment with inflexible production. Ideal for custom and small-batch glass processing, it helps manufacturers improve product qualification rates, enhance working efficiency and strengthen core market competitiveness.
