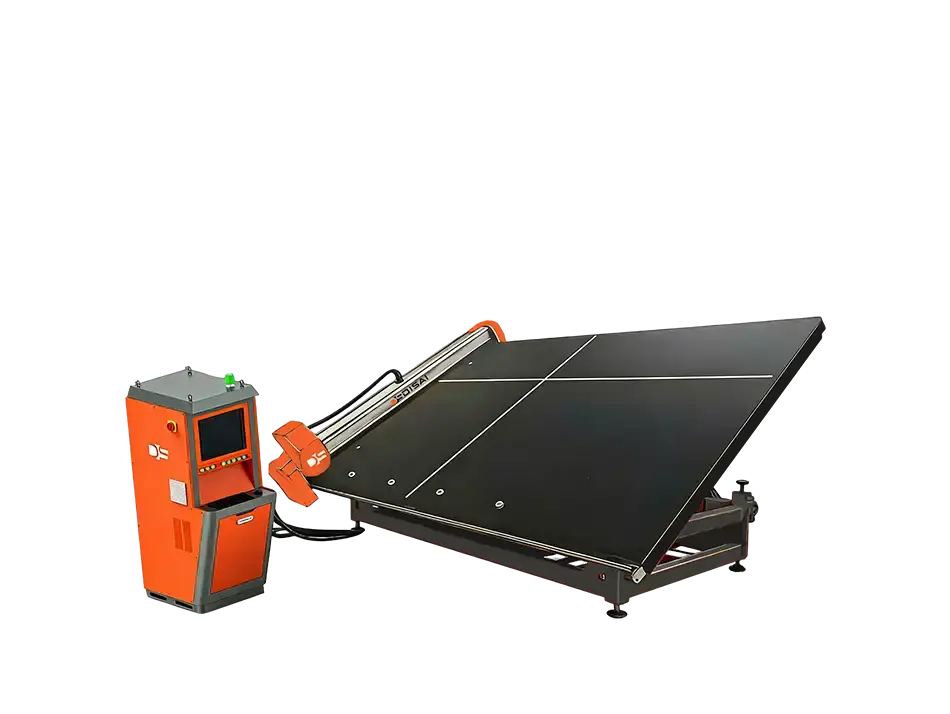

Tilting Glass Cutting Table
Precision and Durability for GlassworkingTilting Glass Cutting Table adopts hydraulic tilting design, easy for glass loading, cutting and separating. It supports glass straight & shape cutting, greatly improving operation efficiency and reducing labor intensity.
Technical Specifications
| Series: DS-TCT (Tilting Glass Cutting Table) | ||||
|---|---|---|---|---|
| Models | Max Cutting Size | Glass Thickness | Maximum Cutting Speed | Precision |
| DS-TCT2621 | 2600×2100mm | 3-19mm | 160m/min | ±0.20mm |
| DS-TCT3826 | 3800×2600mm | 3-19mm | 160m/min | ±0.20mm |
| DS-TCT6133 | 6100×3300mm | 3-19mm | 160m/min | ±0.25mm |
Product Video
Key Features
- Extremely robust structural design
- Automatic cutting pressure regulation
- Advanced shapes editor
- Glass optimization software
- Remote technical assistance
- Automatic labeling
- Low-e removal option
Why Choose a Tilting Glass Cutting Table for Your Industry?
Master the art of large-format glass cutting with the intelligence and power of the DISAI DS-TCT series tilting glass cutting table. This machine is built for fabricators who require both large capacity and smart control, handling glass sizes up to 6100x3300mm. It combines a heavy-duty, robust structure with a sophisticated software package to maximize material yield and cutting precision on every job.
The DS-TCT series features powerful Glass Optimization Software to minimize waste and an Advanced Shapes Editor for creating complex designs with ease. Its intelligent automatic cutting pressure regulation ensures a perfect score every time on glass 3-19mm thick, all while maintaining a high precision of ±0.20mm. The powerful cutting drive operates at a swift 160m/min for high throughput.
The machine's extremely robust structural design provides the foundation for stable, long-term performance. The tilting function ensures safe and easy manual loading of large glass sheets. For ultimate factory integration, the DS-TCT series offers an optional automatic labeling system and is supported by remote technical assistance. This is the intelligent solution for modern glass cutting, designed for fabricators who demand both high performance and smart optimization.
Our tilting glass cutting table is an all-in-one processing equipment specially developed for flat glass cutting, widely applied in architectural glass, furniture glass, door & window glass, mirror processing industries. Equipped with an automatic hydraulic tilting platform, it solves the heavy labor problem of manual glass loading, combining glass feeding, precise cutting, automatic breaking and sheet separating into one workstation. Compatible with both regular rectangular glass and irregular shaped glass, it is the core processing machine for medium and small glass deep processing factories.
Targeting the construction and design sectors, this table addresses the need for a stable and reliable cutting surface that can withstand the rigors of daily use. It is particularly beneficial in scenarios where multiple glass pieces need to be cut at different angles for complex projects, such as glass partitioning or automotive windshields.
Compared to other glass cutting tables, our model stands out with its superior load-bearing capacity and a wide range of adjustable angles. This allows for greater flexibility in handling various glass types and thicknesses, making it a versatile choice for professional glass cutters.
- Architectural & Facade Glass Solutions：Achieving flawless edges and superior precision on large-format glass.
- Photovoltaic & Technical Glass for High-Tech Industries： Delivering ultra-high accuracy for the most demanding technical applications.
- Advanced Glazing for the Automotive Industry：Mastering complex shapes and ensuring perfect consistency for automotive standards.
- Interior Glass for Furniture & Decorative Applications ：Unlocking creative freedom with precise cutting for bespoke interior designs.
