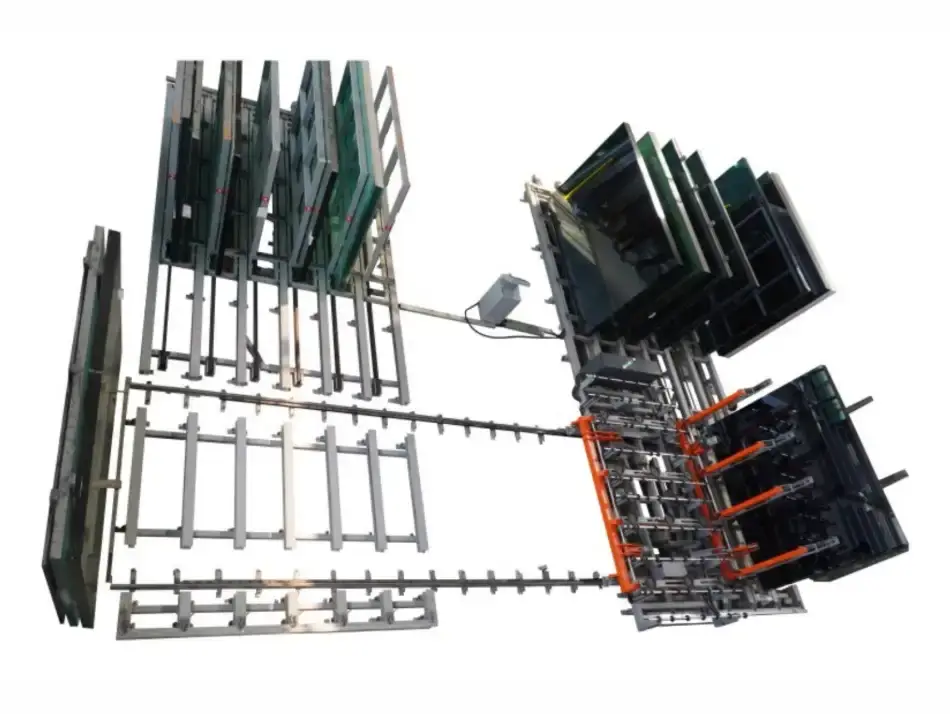

Drawer-type Intelligent Raw Glass Storage System
Drawer-type Intelligent Glass Storage, Smart Inventory, Fast AccessThis drawer-type raw glass storage system enables classified and orderly storage of raw glass sheets. Each glass rack can move independently to supply raw glass to the glass loading table. Compared with traditional racks, it greatly saves workshop space. Featuring easy access operation and a stable anti-tilting structure, it reduces glass breakage. The storage racks are available in custom sizes to suit various glass factories and boost the management efficiency of raw glass warehousing.
Why Choose Drawer-Type Intelligent Raw Glass Storage System
The drawer-type intelligent raw glass storage system is vertical automatic storage equipment for raw glass. Each glass rack can move independently to supply raw glass to the glass loading table, ideal for manufacturers of door, window, home appliance and curtain wall glass.
With compact overall layout, it avoids scratches and collisions during material fetching. Capable of linking cutting lines for automatic raw glass delivery, the built-in intelligent inventory system categorizes glass of diverse sizes and coating types to cut material waste. User-friendly in operation, it is an optimal choice for intelligent upgrading of small and medium-sized glass plants.
- High space utilization. Partitioned bin layout occupies less factory area and outperforms traditional warehouses in space efficiency.
- Materials can be fetched by pulling out individual drawers without moving adjacent glass panels, greatly lowering the scrap rate caused by collision.
- It connects with cutting lines for automatic feeding. The intelligent system classifies inventory and improves raw glass utilization.
- Easy to operate with low labor input and high cost performance, perfectly suited for intelligent renovation of small and medium-sized glass factories.
Product Specifications
| Models | Max Loading Size | Max load Per Rack | Max Speed | Glass Rack Depth |
|---|---|---|---|---|
| DS-DR-ISS4228 | 4200×2800mm | 8000KG | 25m/min | 320mm |
| DS-DR-ISS6133 | 6100×3300mm | 10000KG | 25m/min | 430mm |
Product Advantages
- Space Saving: Adopting dense rack layout, the storage utilization rate increases by more than 40% compared with traditional forklift storage.
- Loss Reduction: Avoid glass breakage caused by collision during forklift transportation and lower raw material loss.
- Labor Saving: The whole storage system operates with automatic scheduling, requiring only a small number of attendants and fewer material handling workers.
- Higher Safety: No forklift traffic inside the storage area, eliminating hidden risks such as glass tipping and on-site vehicle accidents
