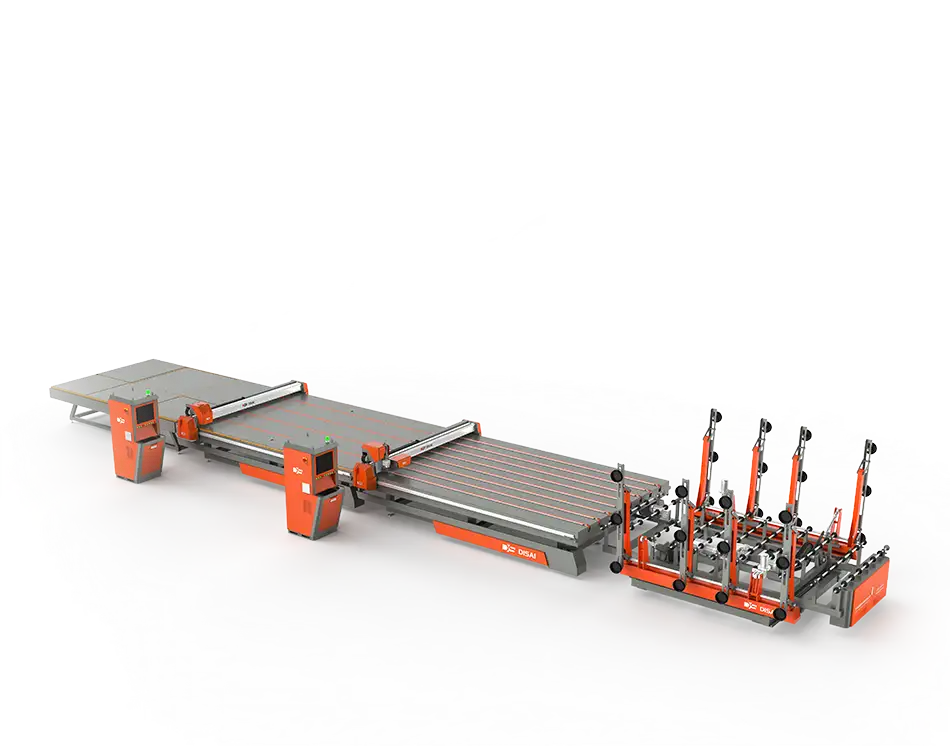

The four-section laser marking glass cutting machine marks first and then cuts, completing the process in one go. The complete information of each piece of glass can be generated into a QR code and engraved on the glass surface, providing a foundation for factory automation connections.
The four-section laser marking glass cutting machine marks first and then cuts, completing the process in one go. The complete information of each piece of glass can be generated into a QR code and engraved on the glass surface, providing a foundation for factory automation connections.
| Models | Max glass size | Cutting precision | Marking precision | Cutting/Marking thickness | Max cutting speed | Marking speed | Laser power and type | Matched loading table model |
| DS-CM2621-JD | 2600×2100 | ±0.15mm | ＜0.5mm | 2-19mm | 180m/min | Standard 3C mark/1s | 15W/20W/25W UV | All can be equipped with 1to 10 work stations |
| DS-CM3725-JD | 3700×2500 | ±0.15mm | 2-19mm | |||||
| DS-CM4228-JD | 4200×2800 | ±0.20mm | 2-19mm | |||||
| DS-CM5133-JD | 5100×3300 | ±0.25mm | 3-25mm | |||||
| DS-CM6133-JD | 6100×3300 | ±0.25mm | 3-25mm | |||||
| DS-CM7537-JD | 7500×3700 | ±0.25mm | 5-25mm | |||||
| DS-CM10037-JD | 10000×3700 | ±0.25mm | 5-25mm | Only equipped with double-turn single-satation | ||||
| DS-CM12037-JD | 12000×3700 | ±0.25mm | 5-25mm | |||||
| DS-CM16037-JD | 16000×3700 | ±0.25mm | 5-25mm | |||||
| DS-CM18037-JD | 18000×3700 | ±0.25mm | 5-25mm |
